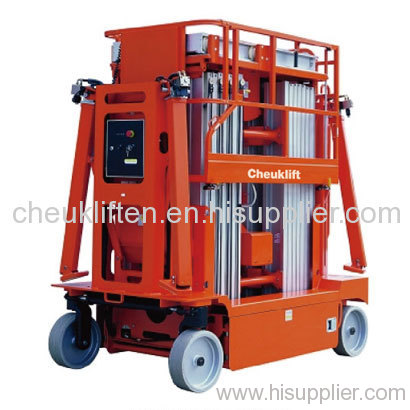

Electric Aluminium Work Platform AMWP6000 manufacturer from China Cheuklift Co., Ltd.

Payment Terms:	T/T,L/C
Place of Origin:	Shanghai, China (Mainland)

Product Detail

Model No.: AMWP6000

Production Capacity: 1000000

Means of Transport: Land

Delivery Date: 7-30days

high efficient

MODEL NO.		AMWP18-6000	AMWP20-6000
S.W.L	KG	160	160
S.W.L on extension	KG	120	120
Outside use(wind up to 45km/h)	KG	120	120
Working height	m	18	20
Platform floor height	m	16	18
Overall length	m	2.3
Overall width	m	1.3
Overall height	m	2.5
platform size	m	1.60*1.08
Platform extension size	m	0.75
Ground clearance	m	0.1
Wheelbase	m	1.88
Turning radius (inside/outside)	m	1.40/3.27
Drive motors		2*48VAC/2KW
Lifting motor		48VDC/3KW
Travel speed(stowed)	km/h	48
Travel speed(Raised)		1.1
Up/Down speed	sec	110/80	120/90
Batteries		8*6V/250Ah
Integrsted charger		48V/30A
Gradeability	%	35
Maximum slope	.	3
Tyres	mm	406*125
Weight	KG	3100	3160
Standard Configuration:
-Can Bus technology
-Proportional controls
-Battery charge indicator
-Swing gate on platform
-Hour meter
-Forklift pockets
-Fault indicator on platform
-Low voltage alarm
-Emergency down button
-Extended platforms
-Charger protection
-Hom
-Tilt protection
-Tilt alarm
-Controller temperature protection
-Driving motor temperature protection
-Traction batteries with big capacity
-2WD
-Automatic leveling hydraulic outriggers
-Over loading limited
